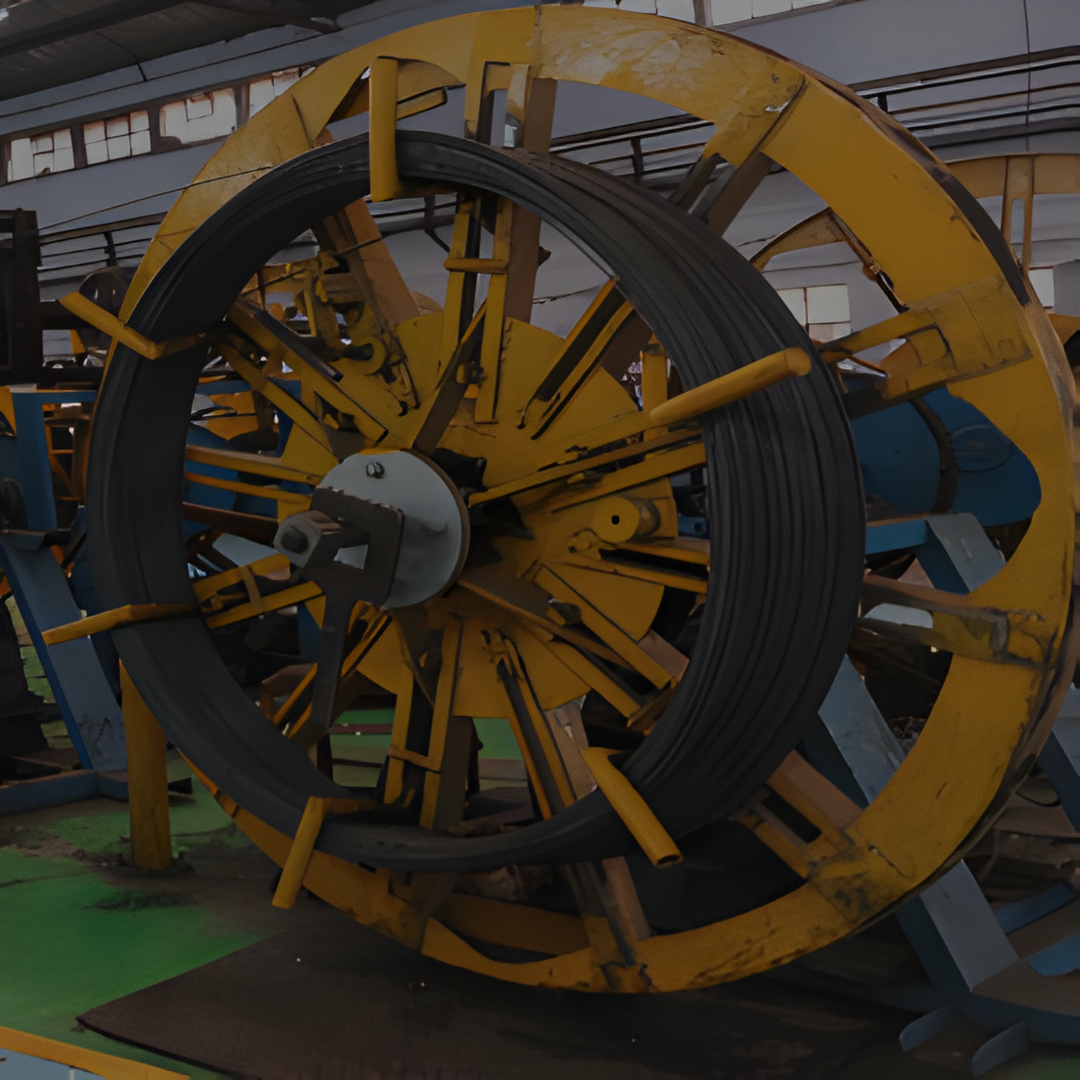

Coil Take up for Wire

Machine Description The Coil Take-Up Machine for Wire is a heavy-duty, high-tension coiling solution designed for rewinding or assembling heat-treated wire into compact, stable coils. Engineered for the wire and metallurgical industry, this machine is built to handle high tensile loads and continuous operation, with a carrying capacity of up to 2 tons. It is ideally suited for downstream processes where the wire needs to be wrapped in coil form after annealing, heat treatment, or drawing. Its rugged design ensures smooth tension control, uniform layering, and secure coil formation. Features • Designed for high-tension take-up of heat-treated wire • Handles wires of various diameters and materials • Carrying capacity up to 2 tons • Equipped with hydraulic or mechanical tensioning system • Robust spindle and heavy base frame for stable operation • Variable speed drive for controlled winding speed • Uniform and compact coil formation with precise layering • Optional auto-stop and coil locking mechanisms • Compatible with continuous production lines Technical Details

Parameter	Specification
Material Compatibility	Stainless Steel, Carbon Steel, Copper, Alloys
Wire Diameter Range	6mm to 16mm (customizable)
Coil Weight Capacity	Up to 2000 kg (2 Ton)
Coil Outer Diameter	Up to 1200mm (customizable)
Core / Spindle Type	Rigid / Expandable Mandrel (as per requirement)
Operation Mode	Motorized with Variable Speed Control
Tension Control	Hydraulic / Mechanical Brake System
Drive System	AC Motor with Gearbox or Servo (optional)
Power Supply	3-Phase Industrial Power
Safety Features	Emergency Stop, Guard Panels, Load Monitoring

Application • Wire drawing and heat treatment plants • Spring wire and cable manufacturing • High-tension steel wire winding • Annealed or tempered wire collection • Coil bundling for transport and dispatch
