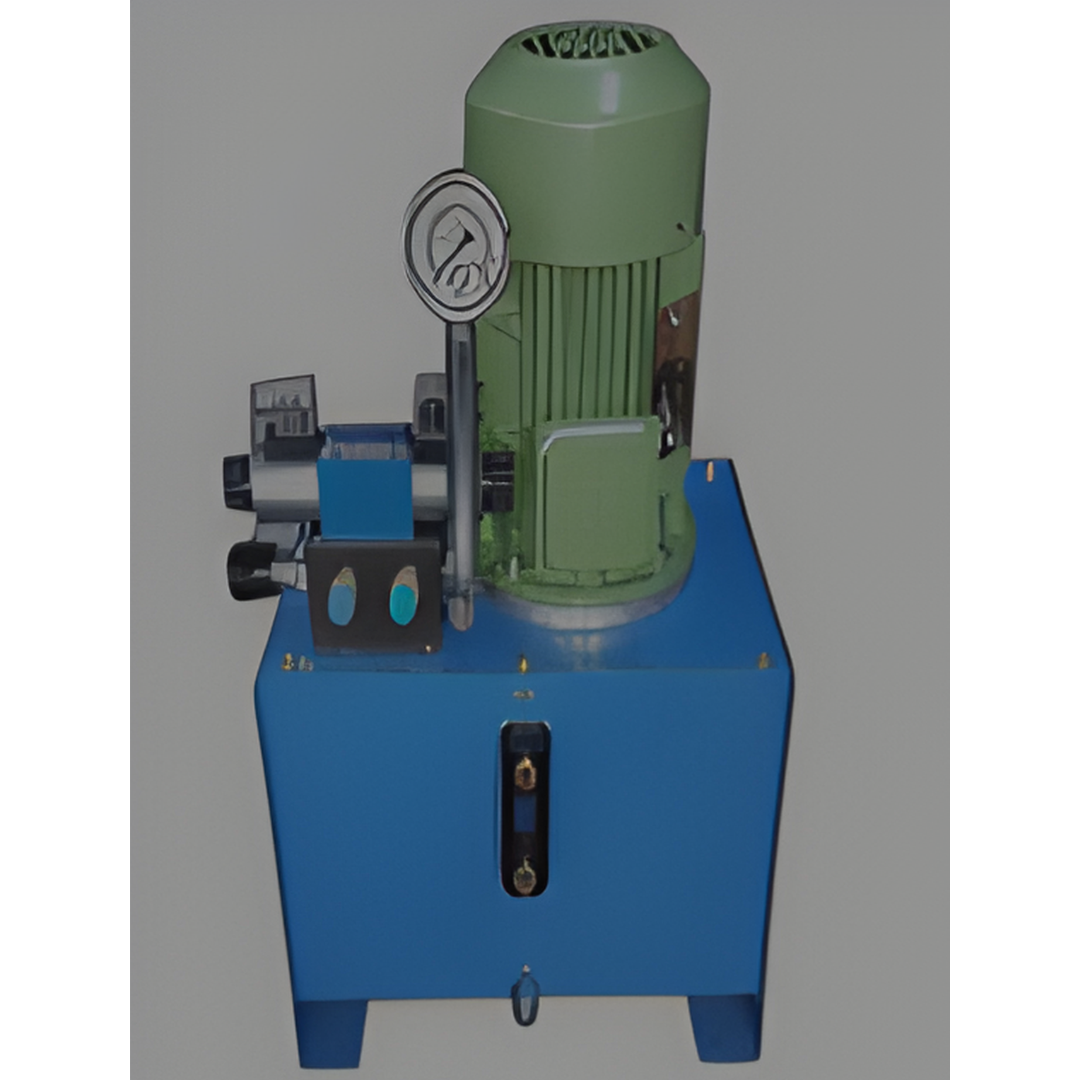

Hydraulic Power Pack

Features • Available in customizable pressure and flow configurations • Supports single or multiple actuators (cylinders or motors) • Compatible with 3-phase electric supply • Integrated with pressure relief valve, suction strainer, and return filter • Tank capacities from 25L to 300L or more (custom sizes available) • Gear, vane, or piston pumps (as per application) • Optional cooling unit, accumulator, and oil level indicator • Compact skid-mounted design for easy installation and maintenance • Ideal for presses, forming machines, hose crimpers, and automation cells Technical Details

Parameter	Specification
Flow Rate	5 LPM to 80 LPM (customizable)
Working Pressure	Up to 250 Bar (higher on request)
Motor Power	1 HP to 20 HP, 3-Phase AC
Tank Capacity	25L / 50L / 100L / 200L / 300L (customizable)
Pump Type	Gear / Vane / Piston Pump
Control Options	Manual / Solenoid / Remote Control
Cooling	Optional Oil Cooler (Air or Water Type)
Filters	Return Line, Suction Strainer
Frame Design	Skid-Mounted Heavy-Duty Steel
Power Supply	3-Phase Industrial Power

Application • Hydraulic press machines (10T to 100T) • Hydraulic pipe flaring and reducing machines • Hose crimping machines and SPMs • Bellow and expansion joint forming systems • Injection molding, shearing, and bending systems • Lifting, clamping, and industrial automation setups
