Product Description

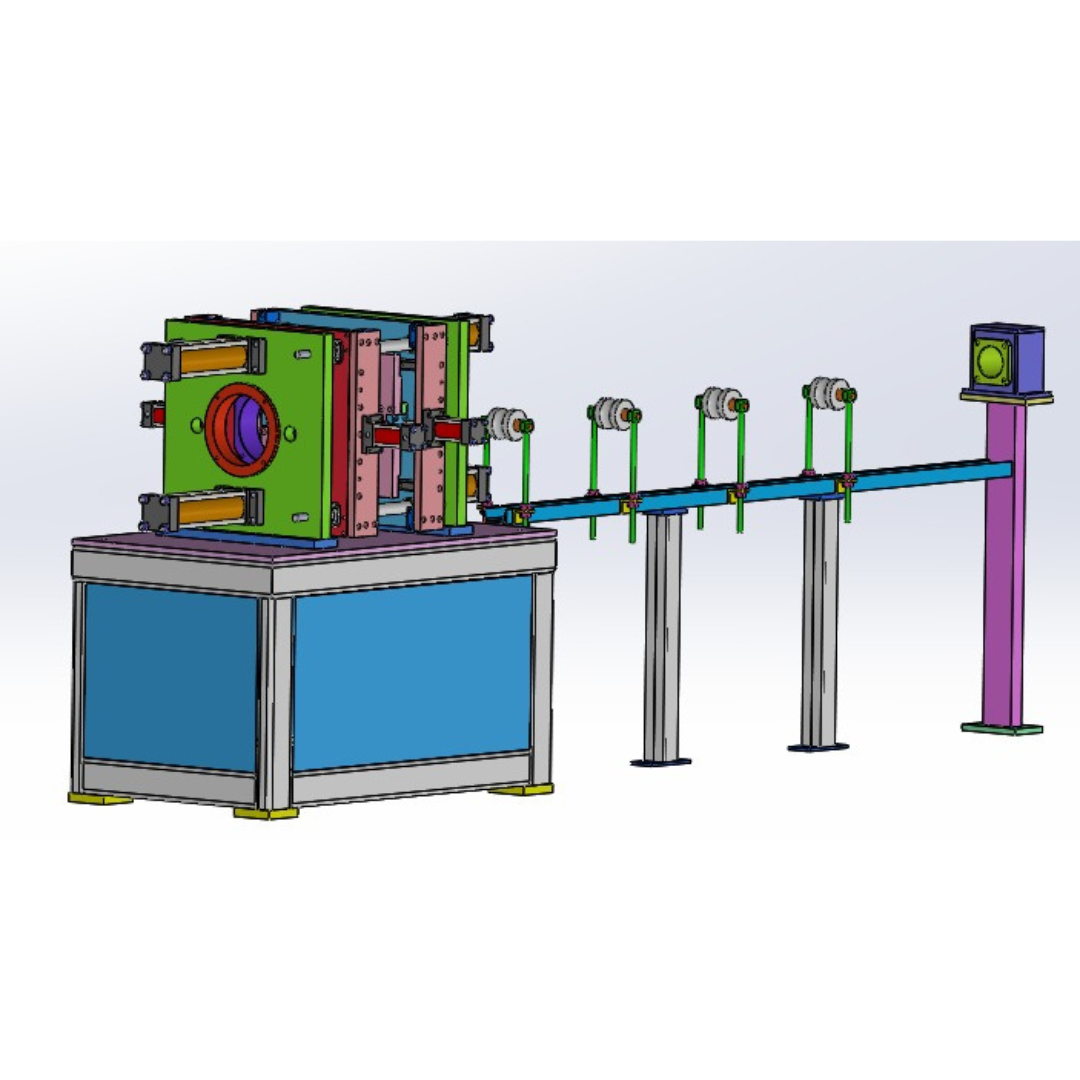

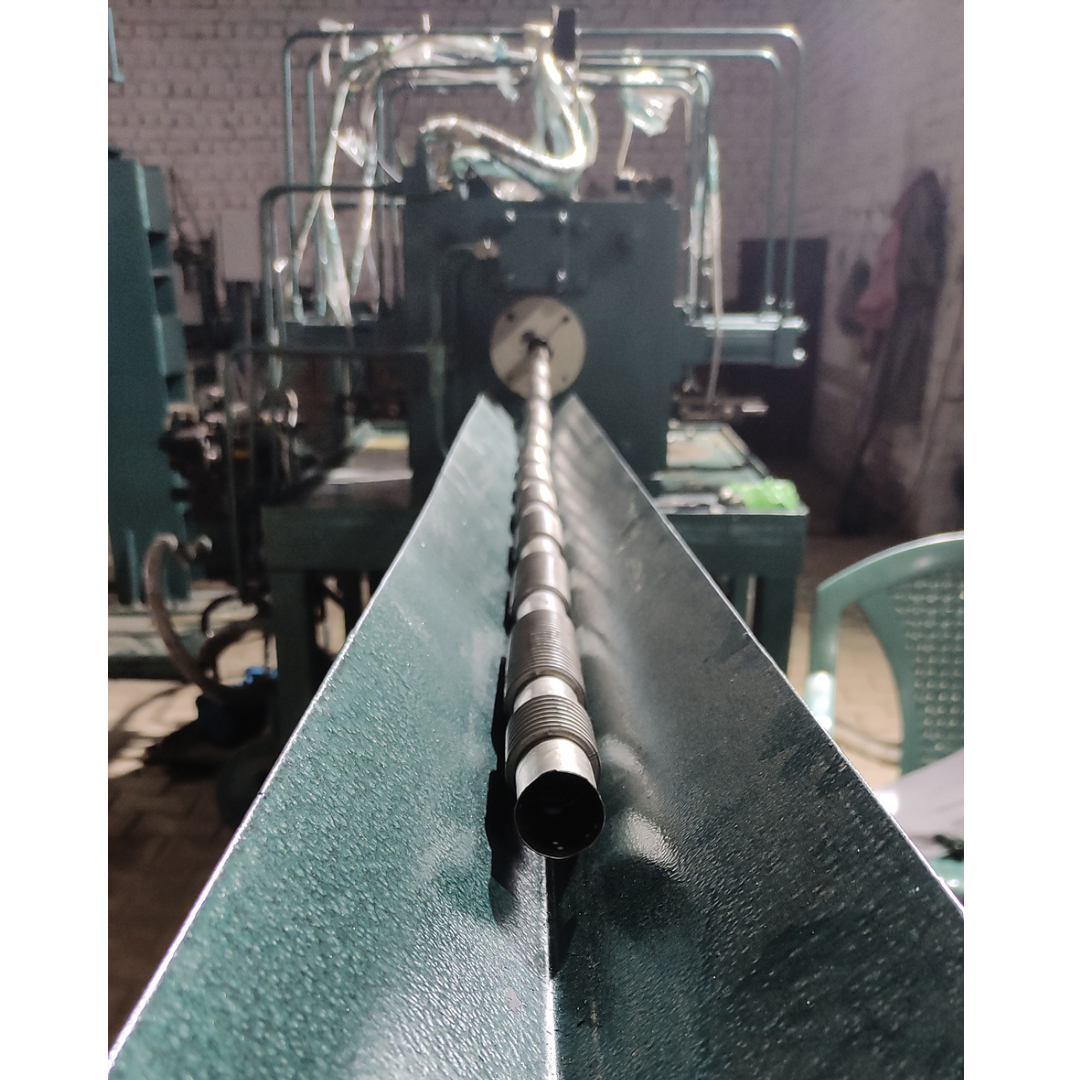

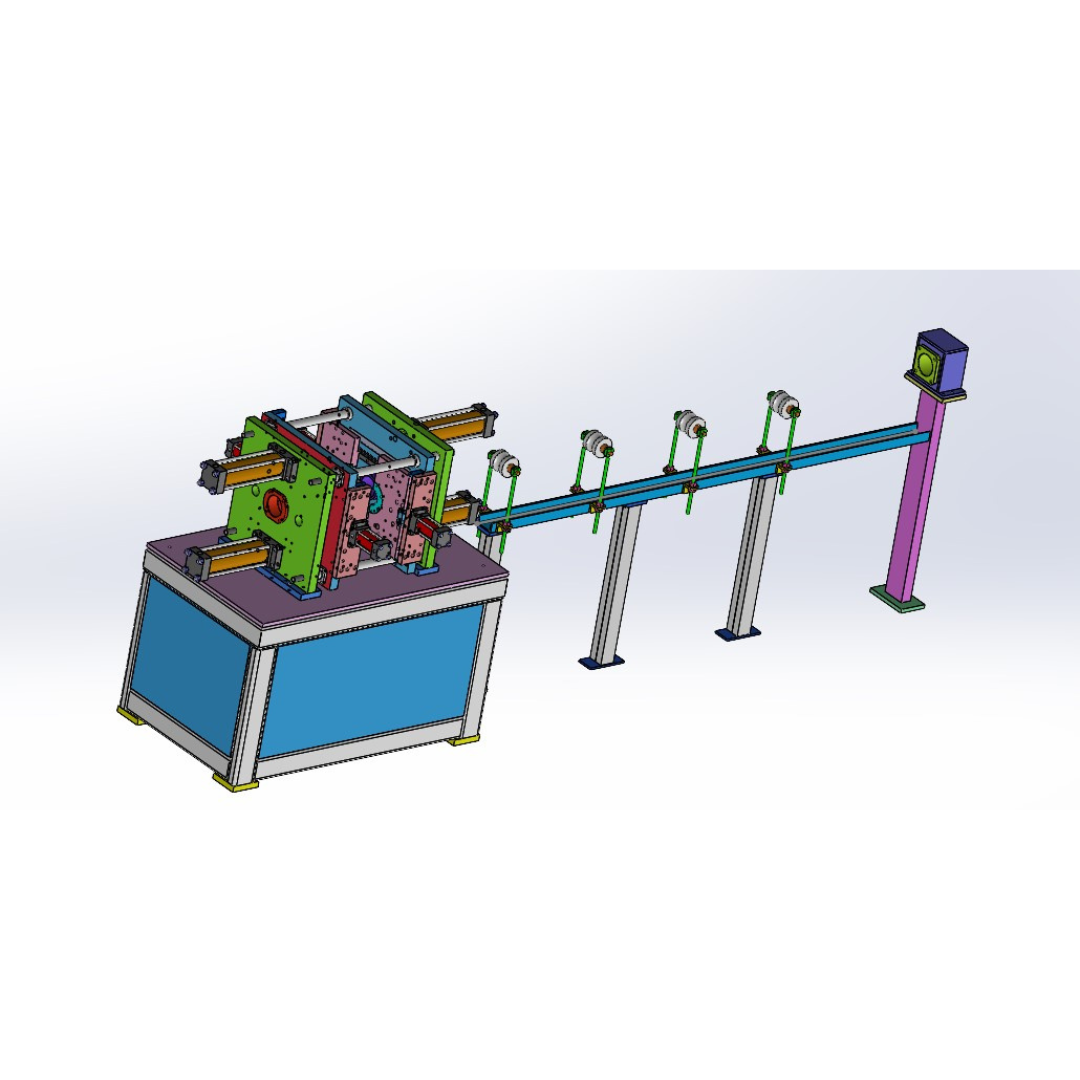

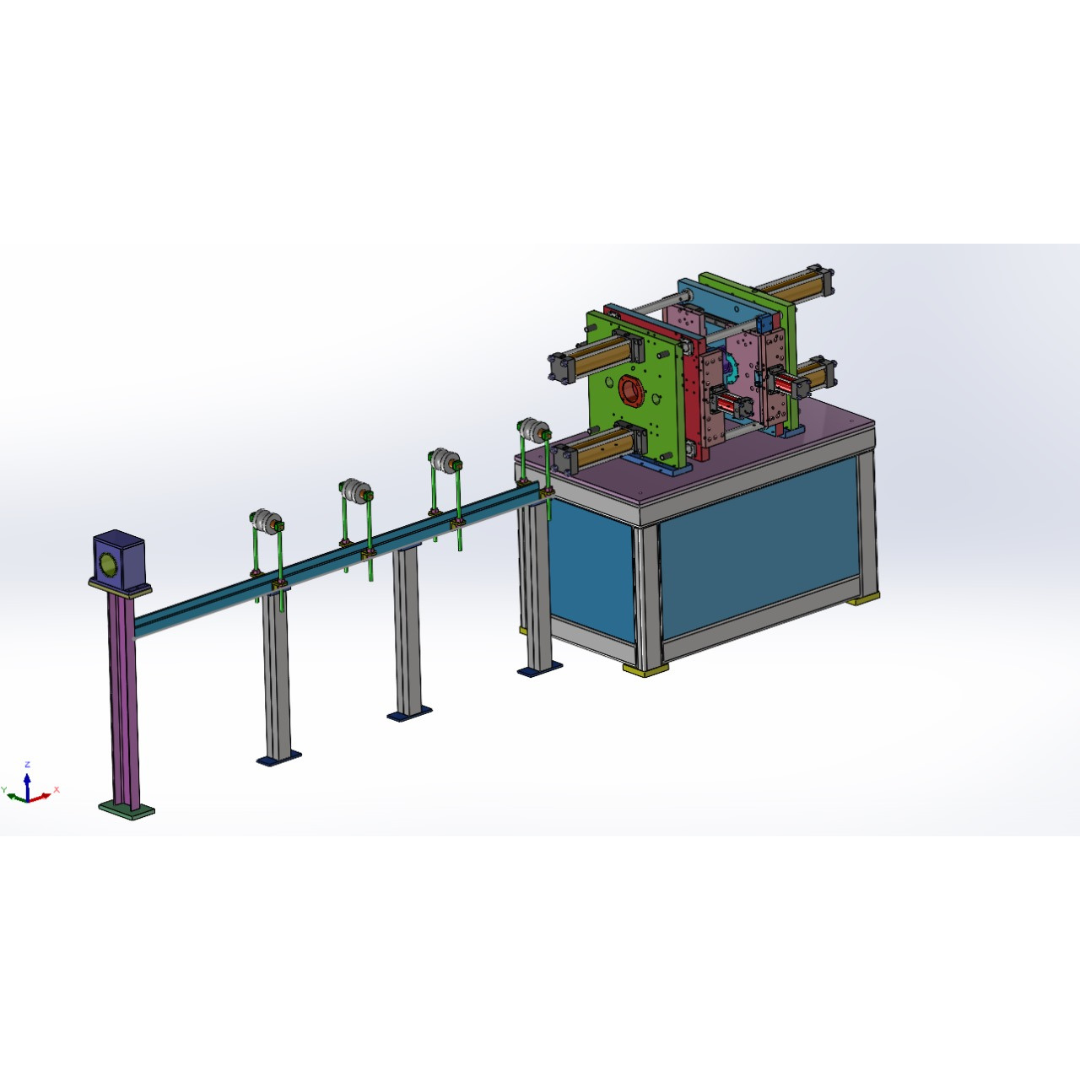

The Stainless Steel Corrugator Machine is a
precision-engineered solution designed for
forming single-pitch corrugations in stainless
steel hoses, expansion bellows, and EGR tubes.
Built to handle a wide range of diameters and
metal grades, this semi-automatic machine
ensures consistent pitch and depth with superior
control. Ideal for automotive, industrial, and
high-temperature fluid transfer applications, it
offers robust performance across three machine
sizes to accommodate diameters from 12mm to
300mm.
Key Features
• Compatible with stainless steel grades SS304, SS202, SS316, SS321, and Inconel
• Single-pitch forming for uniform and repeatable corrugations
• Semi-automatic operation with intuitive controls
• Three model variants for 12–35mm, 40–100mm, and 150–300mm diameter ranges
• Precision tooling for consistent corrugation geometry
• Heavy-duty construction for long service life
• Easy changeover between tooling sets
• Ideal for making SS hoses, bellows, and EGR tubes
Technical Specifications
| Parameter |
Specification |
| Material Compatibility |
SS304, SS202, SS316, SS321, Inconel 600 Series & 800 Series, Hastelloy |
| Forming Type |
Single-Pitch Corrugation Forming |
| Diameter Ranges |
12–35mm, 40–100mm, 125–250mm |
| Operation Mode |
Semi-Automatic |
| Pitch Control |
Sensor Based Adjustment |
| Drive System |
Hydraulic Based |
| Power Source |
3-Phase Industrial Power Supply (440V) |
| Output Capacity |
Depends on model and material specifications |
Applications
• Flexible metal hoses for fluid and gas transfer
• Automotive exhaust bellows and EGR tubes
• Expansion joints for piping systems
• Industrial vibration dampening solutions
• High-pressure and high-temperature conduit systems
