Machine Description

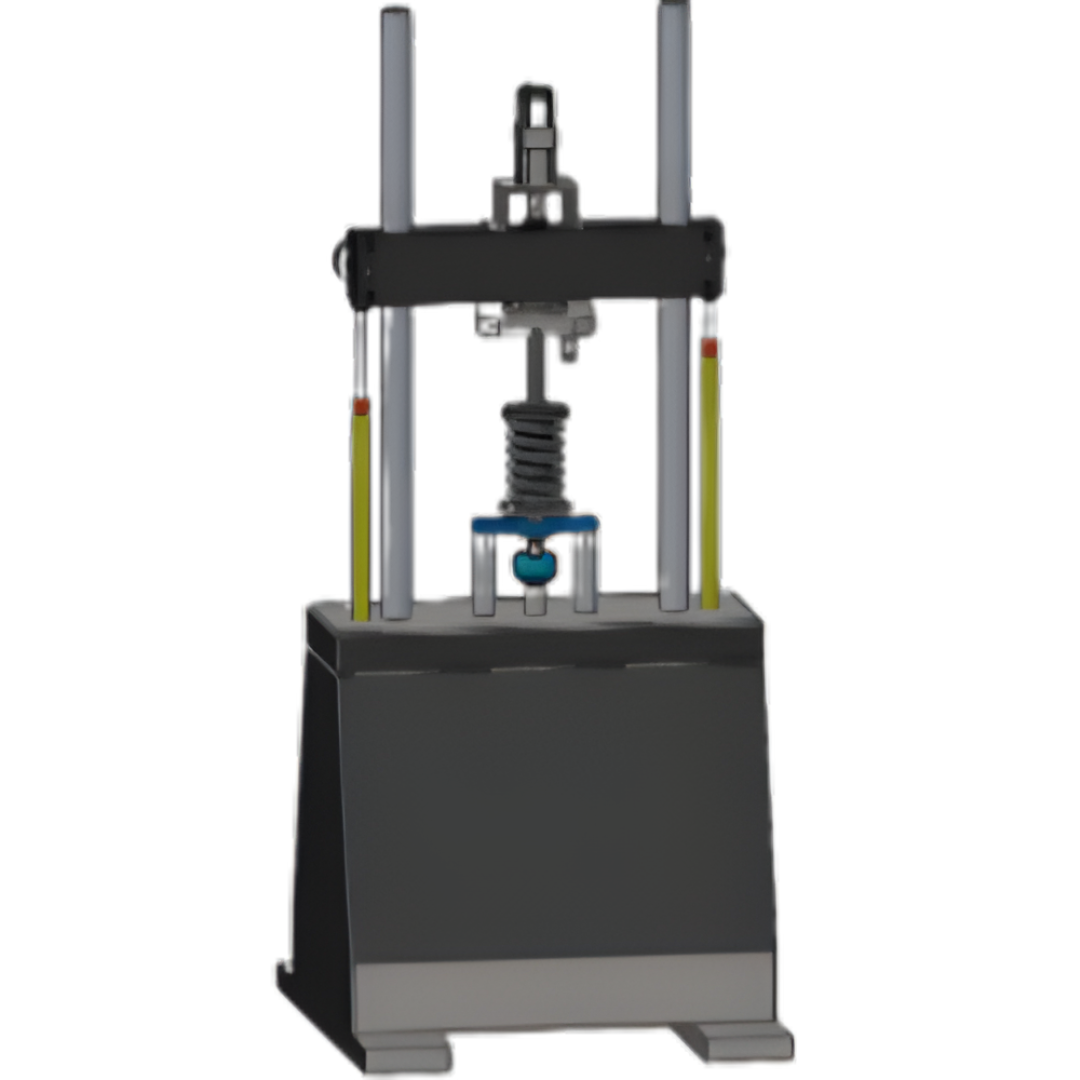

Spring Fatigue Testing Machine is a high-
performance, precision-engineered system
designed to evaluate the endurance and
lifespan of compression, tension, and torsion
springs under repetitive cyclic loading. This
machine simulates real-world stress conditions
by subjecting springs to controlled, high-speed
cyclic loads over extended periods—making it
essential for automotive, aerospace, railway,
and industrial spring manufacturers focused
on quality assurance and durability testing.
Features
• Suitable for compression, tension, and torsion springs
• High-speed cyclic loading for accelerated fatigue testing
• Adjustable stroke length, load, and test frequency
• Test capacity from light-duty springs to heavy industrial types
• Cycle counter with failure detection and auto-stop function
• Digital display or PLC+HMI interface for test monitoring
• Rugged frame for vibration-free long-duration operation
• Safety enclosure and overload protection
• Customizable fixtures for various spring sizes and types
Technical Details
| Parameter |
Specification |
| Spring Types Supported |
Compression, Tension, Torsion |
| Load Capacity |
Up to 10 kN (customizable up to 50 kN or more) |
| Stroke Range |
5mm to 100mm (adjustable) |
| Frequency Range |
1–10 Hz (higher options on request) |
| Max Test Cycles |
Up to 10 million cycles |
| Test Speed |
10 – 600 cycles per minute |
| Control System |
Digital Counter / PLC with HMI |
| Drive Type |
Servo Motor / AC Motor with VFD |
| Power Supply |
3-Phase AC, 415V / 50Hz |
| Safety |
Emergency Stop, Guarded Enclosure, Auto Shutdown |
Application
• Automotive suspension and valve spring durability testing
• Aerospace spring component fatigue analysis
• Railway buffer and brake system spring validation
• Industrial spring manufacturers' quality control
• R&D and life cycle prediction for mechanical springs
